Getting Started

While secureSWF provides a wide array of protection options for Flash applications, getting started with a level of security that could well be all you need is a simple 3-step operation.

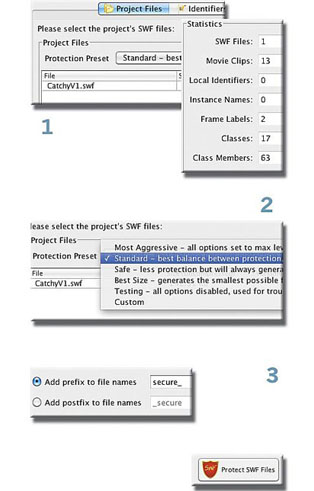

Secure your SWFs - Easy as 1-2-3!

  1. Add SWF file(s) into your project (Project Files tab)

    You can add multiple files which will all be processed with the same settings. You should add all files that interact with each other so secureSWF can detect the references and make sure the obfuscated files will work the same way they did before obfuscation. The Statistics panel shows you info about the file or files in the project.

  2. Look at Protection Presets choices

    These are pre-defined security levels that may be enough for many needs. They offer different protection-to-file size-to-performance ratios. You can optionally set up custom levels exactly suited to your needs if presets are not quite what you want.

  3. Specify prefix or postfix for output file and Protect

    Add a prefix (e.g. secure_) and/or postfix (suffix) for the protected output version of your SWF file so that the original is not overwritten with the protected version. Then click the Protect button.


Of course you will want to explore the many protection options available in secureSWF to get the maximum benefits for your situation. The rest of this guide will introduce you to the major areas of the product to explore next.

At the conclusion of this guide you should be well on your way to understanding how to use secureSWF to achieve the security and performance levels that are right for your Flash applications.

Getting Started with secureSWF Protection Settings

While you can get a pretty good level of protection for your SWF files using presets, these are only the tip of the iceberg when it comes to your options for securing your Flash apps. It will of course take some time to master everything secureSWF has to offer, but it shouldn't take you too long to get acquainted with the major product features and settings and arrive to the level of protection that's good for your needs. Let's look briefly at the main things you should look at when devising a security scheme for your applications.

Identifiers Renaming Tab

Identifier Renaming Tab

Renaming of identifiers in your application source code is one of the main ways secureSWF protects your apps from reverse engineering. The Identifiers Renaming tab provides a number of options that control how secureSWF handles renaming as it obfuscates your source code.

Main Options:

- Enable Identifiers Renaming

This is a toggle that controls whether or not secureSWF will rename identifiers as part of the obfuscation process. Check it to enable renaming of identifiers.

- Level

This setting controls how renaming happens.

- Aggressive Renaming

If you check it, identifiers are renamed with non-printing characters, illegal names, etc. This generally results in smaller names (reducing the byte count in the final obfuscated file). Decompilers can't print or display identifiers.

- Use ActionScript Keywords

this causes keywords inside ActionScript code to be changed to be unintelligible and unrecognizable as keywords.

- Automatically Handle Warnings

secureSWF will handle warnings resulting from renaming of identifiers. Turn off this option if you want to see warnings.

Additional Renaming Options

Fairly self explanatory. Mapping table is just a table of original identifiers mapped to renamed identifiers. It can Help de- obfuscate error message that might arise in your Flash app later. See Help if you need to delve deeper into these options.

Enable Identifiers Renaming

Enable Identifiers Renaming

Additional Renaming

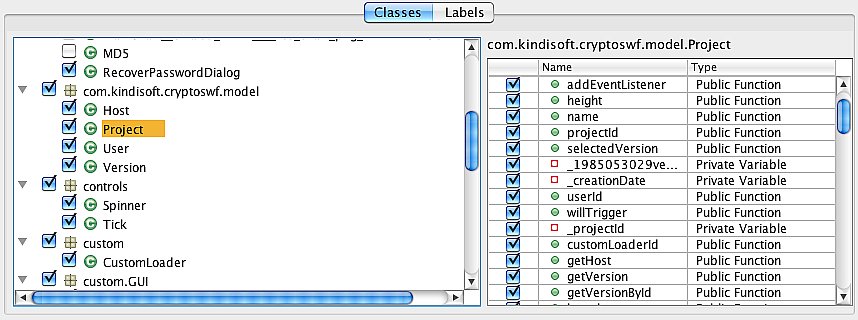

Exploring Packages and Classes The Identifiers Renaming tab displays a tree of the packages and classes in your application, and it shows which classes will have identifiers renamed with the standard renaming defaults. When you select any class on the left, its members are displayed on the right.

Exploring Packages and Classes

Basically what you want to do here is look through the classes, see which ones will have identifiers renamed by the default renaming (these are checked in the listing), and decide whether you want to have more classes processed, and set options for renaming. You can as get granular as you want by selecting individual classes for renaming and making settings for each selected class.

Protection Options Tab

This tab provides the second major security features area of secureSWF. It provides options for code transformations, file optimization, domain locking, and encryption of embedded string literals.

Code Transformation
Code transformation foils decompilers by changing compiled code so that it can no longer be reverse engineered into source. You can set a number of options including Advanced options for a greater or lesser degree of transformation. Detailed information about each option can be found here.

Encrypted Domain Locking
This feature enables you to specify the domains on which the protected SWF file(s) can be hosted. Files will not work if hosted on any other domain. Also can be used to prevent local execution offline.

Encrypted Do,ain Locking

Optimizes the code itself and performs various operations to reduce file size and optimize performance. Detailed information about each option can be found here.

Literal Strings Encryption
Encrypts the literal data that's inside the code - hard-coded passphrases or URLs for example. Replaces literal strings with a special function call that returns the decrypted string, which is stored in an encrypted form.

Literal String Encryption

Back to the top

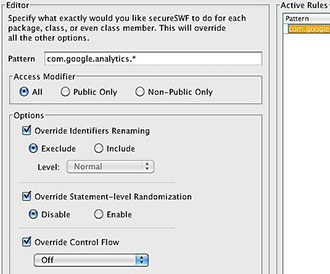

Rules Tab

While previous tabs enable you to specify how your code will be obfuscated down to a single function or identifier, we know that pinpointing every single one could be a very time consuming process. Because of this, we've added the Rules tab.

Here you can just tell secureSWF what to do with all the code in an entire package, or a single class. Just write in the pattern and check which options you want to override.

You can use this, for example, to avoid obfuscating code merged from SWC libraries provided by third-parties.

Rules will override all other settings.

Rules Tab
Back to the top


After protecting your SWF files, we highly recommend to test them. If the protected files are not functioning properly, then one or more of secureSWF protection options requires further tuning. Please follow these simple steps to find out what went wrong.

  1. Remove all files and start over.

  2. After adding your files again, set the Protection Preset to Testing. This will turn off all the processing options. Process the files and test them. If the generated files are still not working properly, then please contact us. You are most likely facing a major bug in secureSWF that we really want to know about and try to fix as soon as possible.

  3. Enable Identifiers Renaming and process the files again. If they are not working, please move to the Identifiers Renaming Troubleshooting section. Once you get it fixed, move to the next step.

  4. Enable Control Flow Obfuscation and set it to 100% intensity. Process the files. If everything works well, then you have the most important features working for you. Please move to step 5. If the files are not functioning properly after enabling this option, then here is what you can do:

    • ActionScript 1 and 2 based projects, leave this option disabled and try Statement-level Randomization and Dynamic Code Wrapping. They are just as effective as Control-flow Obfuscation.

    • ActionScript 3, the Flash Player (debugger version, available here) should throw a verification error such as "Stack unbalanced x!=y" or "TypeA and TypeB cannot be reconciled" with a call stack trace. Please move to the Code Transformation Troubleshooting section

  5. Enable other options one by one until you get the nonfunctional file and then please let us know which option broke your application.

Back to the top

Identifiers Renaming Troubleshooting

While secureSWF tries to automatically deselect identifiers that cause problems when renamed, some identifiers will still slip away and require you to manually deselect them.

First of all, please set identifiers renaming Level to Safe and make sure that Automatically handle warnings and Generate mapping table are checked. Process the files, if the protect files are still not working properly then please follow the following steps:

  • ActionScript 1 and 2:

    You have to try out different settings multiple times to find out which identifier is causing the problem. You only have to do this once for every project since you can save the settings and load them later when you need them again.

    1. If you have multiple SWF/SWC files, remove them and process each one individually.

    2. In the Identifiers Renaming tab, right-click the SWF file in the All identifiers tree and click on Deselect All. This will deselect all the identifiers in the file.

    3. Start selecting identifiers group by group; right under the SWF file, you will usually find the "Time Line" node (sometimes a Symbol, Package, or Class). Right-click the first node under the SWF file and click on Restore Defaults (not Select All). Process the file and test it. If it works, move to the next node and do the same to it. If it doesn't work, deselect the node, skip it, and move to the next node.

    4. Now you should have a working protected file with part of its identifiers renamed. You can now rename more identifiers if you want to and test the protected file after every change.

  • ActionScript 3:

    Luckily, the Flash Player (debugging mode) will throw verification errors in ActionScript 3 if there is something wrong with identifiers renaming. Some error messages will directly show which identifier should be deselected, but others require further analysis.

    If there is no error message, then most likely the problem is caused by a Frame Label. The easiest way to deselect all the Frame Labels is by clicking on the Advanced button right under the identifier tree, check Frame Label, and enter "*" in the Pattern textfield then click Apply. Process the file and test it. If that doesn't fix the problem, the deselect all the classes names in the default package , should fix the problem.

    Error messages such as "Class $4 could not be found." usually means that the class which its new name is now "$4" wasn't renamed correctly at its definition. To find out the original name of this class, use the Stack Trace Deobfuscator. Then deselect the identifier. Sometimes the original identifier name will appear in the error message such as "Variable MyVar is not defined." In that case, simply deselect "MyVar".

    Other error messages such as "Cannot access a property or method of a null object reference." or "A term is undefined and has no properties." require further analysis. To find out what went wrong in this case, first deobfuscate the call stack trace by using the Stack Trace Deobfuscator. Then follow these steps:

    1. Look up the code of the call stack trace top function and create a list of identifiers this function accesses. If this function is a Flash/Flex API function, move to step 2. For each identifier, deselect it and test the file until the error goes away. When the error message goes away, then the identifier that you've just deselected is the one that is causing the problem.

    2. For every function call in call stack trace, deselect the identifiers that are being passed as parameters. Deselect them one by one, and test the file after every change to find out which identifier is causing the error. This should fix the problem.

Back to the top

Code Transformation Troubleshooting

Note: This section is for ActionScript 3 only.

With secureSWF v3.4, you can now disable code transformation options for one or more function (getters, setters, and class constructors as well) while leaving it enabled for the rest of the code.

If there is a problem with Control Flow Obfuscation or Dynamic Code Wrapping, the Flash Player (debugger version) will throw one of the following errors:

1017     Scope stack overflow occurred.
1018      Scope stack underflow occurred.
1020     Code cannot fall off the end of a method.
1030     Stack depth is unbalanced. _ != _.
1068     _ and _ cannot be reconciled.

After the error message, you will find a call stack trace. If the identifiers in the call stack trace are renamed, you can either use the Stack Trace Deobfuscator tool in secureSWF, or disable Identifiers Renaming.

Note: If Control Flow Obfuscation is set under 100% intensity, the error might not occur all the time. This is because this algorithm will choose random places to alter the control flow if set under 100% intensity. For testing, we recommend setting Control Flow Obfuscation to 100%.

If you are getting one of the errors in the pervious table after obfuscating your files with secureSWF, look up the last function name, class, and package in the call stack trace. This is usually the function that is causing the error when obfuscated. You need to disable code transformation for this method only.

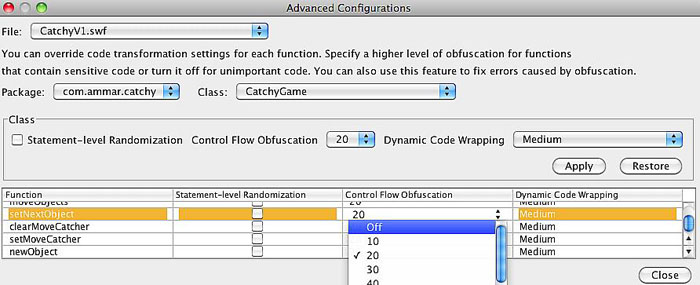

To do that, click on the Advanced button in the Code Transformation group-box. This will open a dialog where you can disable Control Flow Obfuscation, Statement-level Randomization, and Dynamic Code Wrapping for the function that is causing the error when obfuscated. Choose the file that has the error (if you have multiple files), then choose the package, and the class that contain the function. The table at the bottom of the dialog contains all the functions, getters, setters, and the class constructor of the selected class. You should be able to find the function name that appeared in the call stack trace in that table. Click on the cells next to the name and disable all the option.

 advanced code trsansformation screenshot

Close the dialog and click on Process again. This should fix the error.

Back to the top

Detailed Documentation of secureSWF Options

The following is a detailed documentation of secureSWF features and options to help you better understand how to use each section and how it will affect your code.

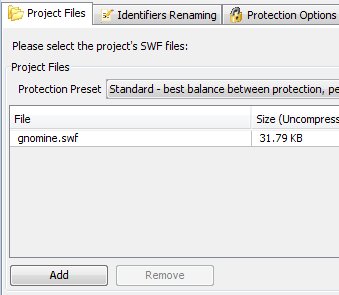

Project Files

secureSWF is designed to handle either a single SWF file or multiple SWF files that interact together. The Project Files section allows you to add the SWF file(s) that you wish to protect. To get started, click on the "Add" button and select the SWF file(s) that you wish to protect. Or, alternatively, drag the SWF file from your file browser into secureSWF.


Project Files

Once you've added the SWF file(s), you will notice that secureSWF starts analyzing the code and automatically determining the best obfuscation settings. You will also notice that there are a number of statistics about the SWF file(s) that you've added in the bottom-right group-box. Now, you can directly click on the "Protect SWF Files" button on the upper-right corner to protect and save the SWF files. Or, optionally, select one of the Protection Presets that suites you.

Saving The Files

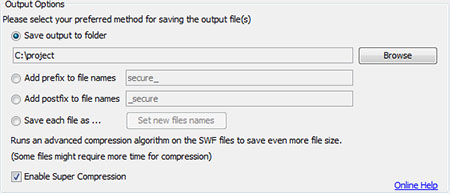

You should select the method of saving the new protected SWF file(s) using the options in the Output Options group-box. The following is a description of each option:

Output options

  • Save Output to Folder: The protected SWF file(s) will be saved to the selected folder using the original filename(s). If a file exists in that folder with the same name, it will be overwritten.

  • Add prefix to filenames: The protected SWF files will be saved in the same folders they are in but with adding the prefix text that you've entered (default "secure_") at the beginning of the filename.

  • Add postfix to filenames: The protected SWF files will be saved in the same folders they are in but with adding the postfix text that you've entered (default "_secure" ) at the end of the filename.

Back to the top

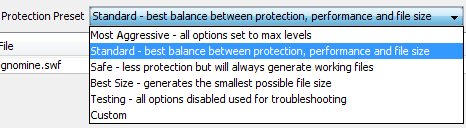

Protection Presets

You can avoid digging deeper into the settings by selecting one of the Protection Presets. You can set secureSWF to generate the most aggressively protected SWF files or to generate a smaller SWF file size. The following is a detailed explanation of each preset:

Identifiers Renaming

Most Aggressive:
Sets all options to maximum level. Renames all possible identifiers, enables Statement-level Randomization, sets Control Flow Obfuscation and Dynamic Code Wrapping to maximum, and enables Function Calls Breaking. It also enables Code Optimization and removes Metadata. Using the Most Aggressive preset might generate, in some cases, nonfunctional SWF files.

Standard (default):
Best balance between protection, performance, and generated files size. Renames identifiers that were determined to be safe to rename during analysis, sets Control Flow Obfuscation to 20%, sets Dynamic Code Wrapping to medium and enables Function Calls Breaking. It also enables Code Optimization and removes Metadata. Using the Standard preset guarantees to break all decompilers and is recommended to use.

If you have faced any issues with the previous presets, try the Safe preset. While the generated SWF files will not be as protected as in the previous presets, but the applied protection will be enough to confuse decompilers and prevent them from generating anything useful.

Best Size:
You can use secureSWF to shrink your SWF files size. This is done by disabling all code transformation features, renaming identifiers into shorter names (usually one or two characters), optimizing the byte-code, and removing the metadata.

Disables all options. Used for troubleshooting.

Back to the top

Identifiers Renaming

One of the most powerful features of secureSWF is its ability to rename just about every identifier in your SWF file from variables and functions names to frame labels and symbol names in addition to AS3 and AS2 classes. Not only that, but also secureSWF automatically determines the identifiers that are safe to rename and the identifiers that are not. secureSWF has the ability to rename the following identifiers:

  • Local Variables and Functions
  • Function Parameters (removes)
  • Instance Names: Movie Clips, Textfields, and Buttons.
  • Frame Labels (removes)
  • Textfield Variables
  • Target Path Strings, such as "_level0/a_mc/b_mc"
  • AS2/AS3 Packages, Classes, and Classes' Members.

Identifier Renaming

To enable Identifiers Renaming make sure that the Rename Identifiers checkbox is checked. There are 6 tab pages (2 for AS3) in the Identifiers Renaming section:

  • All: shows all the identifiers in the SWF file(s) in a tree-like hierarchy (except for AS2 classes'members).
  • Local Identifiers [AS2 only]: shows a table of all the local variables and functions in the SWF file(s) with their locations and types.
  • Labels: shows a table of all the frame labels and anchor names in the SWF file(s) with the location of each frame label.
  • Instance Names [AS2 only]: shows a table of all the symbol instances names in the SWF file(s) with their locations and types.
  • Global Identifiers [AS2 only]: displays all the global identifiers (variables and functions that are accessed using the keyword "_global") of each SWF file and the AS2 classes names.
  • Class Members [AS2 only]: displays all the identifiers that are found inside AS2 classes.
Back to the top

Renaming Level

secureSWF will help you determine which identifiers are safe to rename. You can change the renaming level from normal to either rename everything or to only rename identifiers which are never referenced by a literal string in anyway.

Aggressive Renaming

Aggressive Renaming turns your identifiers into string tokens that misleads decompilers, foils code formatters, and most importantly greatly distracts the code reader. When this feature is turned on, new identifiers names can be just numbers, operators like +, /, *, ?, ! and so on, whitespaces such as a space, tab, and many other unprinted ASCII characters.

Aggressive renaming will choose a digit or one of the 51 symbols (such as &, $, #, backspace, enter .. etc) for the first character of the identifier's name. This will ensure that the new identifiers names are all illegal names for ActionScript. If you have less than 61 identifier in your SWF file, then all the new names will be a single character that is either a number or a symbol.

With v3.3 you now have control over Aggressive Renaming. In previous versions, it was always turned on. Aggressive Renaming will be turned on by default for AS2 projects and off for AS3 projects.

When disabling Aggressive Renaming, all the new identifiers names are going to be numbers preceded by '_-' (without the quotes). This makes the new names illegal for ActionScript but fine with XML. You will find turning Aggressive Renaming off useful when using XML data-binding with Flex.

Back to the top

Use ActionScript Keywords

When this feature is turned on, Identifiers Renaming will use ActionScript reserved words (keywords), such as switch, case, if, while, do... etc, for 38 of the new identifiers names. It will randomly select the identifiers that will be renamed to ActionScript keywords. This option, is turned on by default for both AS2 and AS3 projects.

Additional Renaming

Options in Additional Renaming renames or removes identifiers that do not appear in the identifiers tree and tables:

  • Protected Namespaces:
    These identifiers are added by the compiler to internally reference classes. These identifiers are rather long since the compiler uses the package and class name to form them. secureSWF renames them into shorter meaningless names. Renaming protected namespaces does not affect the application.

  • Function Parameters:
    Function parameters in AS2 and AS3 are converted into registers and are no longer used in the code but the function definition still holds their names. Enabling this option will remove them.

  • Generate Mapping Table:

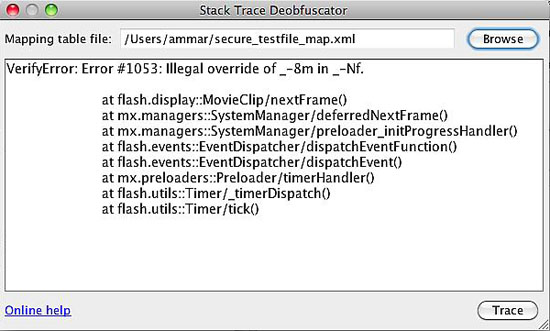

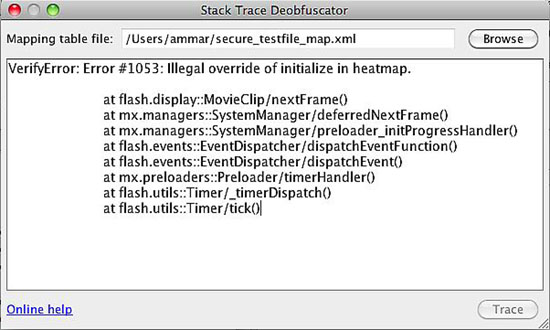

    secureSWF is now able to generate a mapping table of the original and new identifiers names. The mapping table is generated using the pattern protectedFileName_map.xml and saved in the same path as the protected file. When this option is enabled, a mapping table is generated for every file. You can use the mapping table in the Stack Trace Deobfuscator tool to translate error message from AS3. Keep the mapping table in a safe place and do not distribute it.

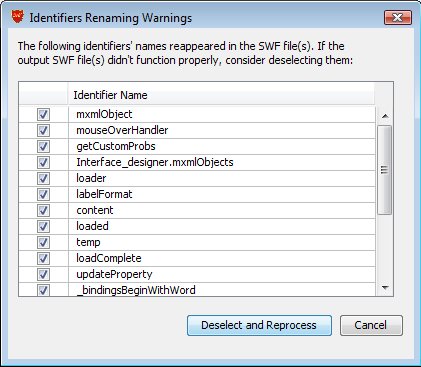

PostBuild Warnings

When you process the SWF files (by clicking on the "Protect SWF Files" button), secureSWF will check if there are still strings in the SWF files that match any of the identifiers. If a string matches an identifier, a warning dialog will appear. It is recommended to click "Deselect and Reprocess" in this case. secureSWF will automatically handle this for you when "Automatically handle warnings" is checked.

Identifier Renaming

Back to the top

Code Protection

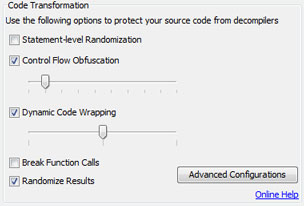

Code Transformation

secureSWF offers four different methods to protect your source code from reverse-engineering and decompiling that can be applied separately or together. Each protection method is compatible with all the Flash players from v5 to v10 and has been tested separately to break all the known decompilers and disassemblers. The following is a description of each method, along with its advantages and disadvantages:


Code Transofrmation

Statement-level Randomization

Randomly restructures the byte-code instructions that makes up an ActionScript statement making it almost impossible decompile the source code. The performance and file size effects of this method depend on the source code. A block of code that has no branches (for example, if-statements, for loops, or function definitions) will become smaller in size and will execute faster. On the other hand, extra byte-code instructions will be added to handle the branches which has negligible impact on the performance and increase in the SWF file size.

Control Flow Obfuscation

Adds extra branches to the byte-code that distracts decompilers and disassemblers. This method increases the SWF file size depending on the selected intensity. You can set the intensity between 10% and 100%; a 10% intensity generates a smaller SWF file while a 100% intensity generates a more protected SWF file. Our testing results have shown that even a 10% intensity will break all known decompilers most of the time.

Dynamic Code Wrapping

Wraps the ActionScript blocks with branches and junk bytes that effectively foil decompilers and disassemblers. The size and performance impact of this method is negligible. You can set Code Wrapping to three levels; minimum, medium, and maximum. The degree of code wrapping will determine the size of the added code. Use maximum code wrapping for maximum protection, and minimum to get a smaller file.

Break Function Calls

Makes it much harder for a decompiler to find out what parameters are being passed to a function call.

Back to the top


By renaming identifiers to smaller names (to one or two characters), removing frame labels and metadata, and applying code optimizing techniques, secureSWF can actually be used as a SWF optimization tool to generate files that are smaller in size and lighter to play.

secureSWF also has the following optimization techniques:

  • Compacts SWF tags headers.
  • Removes duplicate not-instructions.
  • Removes duplicate export tags.
  • Removes dead code blocks.
  • Removes debugging information.
  • Removes Metadata.
  • Optimizes control flow statements by reducing the number of branches in the code.

Super Compression

This feature will reduce the SWF file size by an average of 10% by running an advanced compression algorithm that requires more time for compression but will not affect the decompression speed or the application performance at all.

Identifier Renaming

This compression algorithm favors file size over compression speed by performing an exhaustive search of all patterns and is equipped with an advanced block splitting technique.

The default setting will reduce the file size as close to smallest possible size as pre-compression calculations can predict but you probably can still shove some more bytes by trying out different Huffman blocks values. This is not the actual block count, but every value will generate a different file size. From our experience, the difference between the default setting and the best Huffman blocks value is less than 100 bytes only. And there is no way you can tell which value will be best, you just have to try.

Back to the top

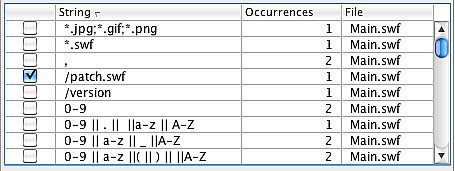

Literal String Encryption

While obfuscation protects the code logic, valuable data such as access passwords and sensitive URLs remain in the SWF file as clear text. Malicious users can simply open the SWF file using a text editor (decompress the SWF file if compressed) and view the literal strings that exist in your code.

secureSWF allows you to select the literal strings in your SWF file, encrypt them in the SWF file using a very secure symmetric encryption algorithm, and decrypt them only when needed at runtime. Please note that this entails an added overhead each time the string is accessed.

To use this features, look up the strings in the table. It shows all the literal strings, the number of occurrences, and their location. Simply, check the strings that you wish to encrypt.

Back to the top

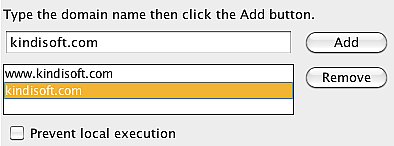

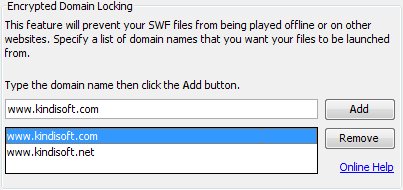

Encrypted Domain Locking

Inserting an encrypted domain lock to your SWF file(s) will greatly decrease the chances of having your application launched offline or on other websites. The application will simply refuse to run if it was copied to a different location than what it has been locked to.

What makes this feature powerful enough to rely on is that the locations (URLs or domains) you have locked the application to are encrypted inside the SWF files and will only be decrypted at runtime. This makes finding out what is happening, and changing it, a very time and effort consuming task to a level that recreating the application from scratch is usually easier.

Domain locking works differently for AS2 and AS3. For ActionScript 2, use the URL or the beginning of it to lock the application. For example, to allow the application to work on, you will have to enter "" and "". You may also want to include "https://" as well. This will allow users to run the application as long as the URL it is being launched from begins with "" or "".

You can also go deeper and specify a folder. For example, you can enter "" and "". Now, the SWF files has to be in the folder "folder" or its sub-folders on

Finally, to allow users to run your application locally, add "file://" to the domains list.

For ActionScript 3, you should use the domain name, not the URL. For example, enter "" and "" to allow users to run the application while it is hosted at You cannot specify a folder or a sub-folder for AS3.

Domain locking

To allow users to run the SWF files on their local machines, add "localhost" to the domains list for ActionScript 3.

Make sure to add all the domains and their variations that you want to allow users to launch your application from.

Back to the top


To help you even control how secureSWF processing your code more easily, we added a global rules panel to secureSWF v3.4. Using this panel, you can create any set of rules to override renaming and code transformation settings for every package, class, or even class member.

This is done by first specifying a pattern to match targets with. For example, 'com.kindisoft.util.*' will match all classes and class members in the package 'com.kindisoft.util'. And 'com.kindisoft.util.Md5' will include the class Md5 and all it's members.

After that, just override the options you would like this rule to apply. You can enable/disable identifiers renaming, and Statement-level Randomization, or set a specific value for Control Flow Obfuscation or Dynamic Code Wrapping. For options that you don't override, secureSWF will either apply the default setting, or the value that you have set in other places.

Identifier Renaming

Back to the top

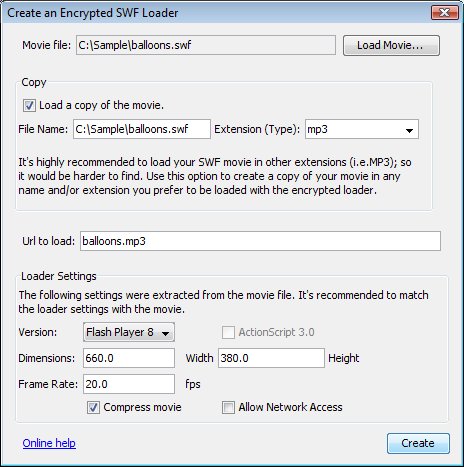

Encrypted Loader Creator

This tool will help you to highly decrease the chances of having your SWF files downloaded or used offline. It simply creates a new SWF file which dynamically loads your original SWF file into it.

To increase this feature's power and reliability, the name and location of the original SWF file are encrypted. In addition to that, you can change the extension of the original SWF file into any random string (i.e. .mp3 or .js). This will make finding the original SWF file in the browser cache a much harder task. The main important gain from using this tool is that users who will try to use SWF rippers (grabbers) will not be able to download the original SWF file at all.

Using the Encrypted Loader Creator Tool

First of all, it is important that the settings of the created loader match the settings of the original SWF file you wish to load. You can
start by clicking on "Load Movie..." and selecting the original SWF file so that the "Encrypted Loader Creator" tool would be able to extract its settings.

After that, you can optionally create a copy of the original file using another file extension (i.e. .mp3 instead of .swf). To do so, check the "Load a copy of the movie" check-box, then fill in the file name and choose from the drop-down-list an extension, or type in any extension you prefer. Changing the file extension is highly recommended.

The next step is to make sure that the URL field is exactly what the loader is going to load. It could be just the file name, if the original file and the loader are going to be in the same folder, or the full URL
(file path) of the original file that will be loaded.

Encrypted Load Creator

Finally, you can optionally make adjustments to the loader settings. The following
table explains each option:

Version The SWF file format version.
Dimensions The width and height in pixels of the movie.
Frame rate The frame per second rate, this should always match the original file.
Compress movie For version 6 and later, SWF files could be compressed.
ActionScript 3 Use ActionScript 3 to create the loader. Should match the loaded SWF file.
Allow Network Access Should match the loaded SWF file.
Back to the top

Stack Trace Deobfuscator

This tool will help you translate error message from AS3 based obfuscated SWF files when running them in the stand-alone Flash Player. You will find this tool very handy in troubleshooting.

There is an XML mapping file generated for every protected file when the option Generate mapping table is enabled. The mapping file name follows the pattern protectedFileName_map.xml and is saved in the same path as the protected file. To use this tool, click on browse and select the mapping table for the file that generated the error. And then paste the error message from the Flash Player in the text area and click Trace. This will deobfuscate the error message showing the identifiers in their original names.

Back to the top

Command-line Interface

ssecureSWF has a command-line interface that could be used for batch execution and build process integration. Using the CLI is different on each platform:


You can use the command-line interface in two forms:

ssCLI.exe Project_file Output_folder [override_options]


ssCLI.exe SWF_file Output_folder [options]


You can use the command-line interface in two forms:

ssCLI Project_file Output_folder [override_options]


ssCLI SWF_file Output_folder [options]


You can use the command-line interface in two forms:

secureSWF Project_file Output_folder [override_options]


secureSWF SWF_file Output_folder [options]

The options will override the project settings and secureSWF's defaults as the following:

Switch Short Values Description
AggressiveRenaming a on, off Aggressive Renaming
BreakFunctionCalls b on, off Break Function Calls
ControlFlow c Integer from 0 to 100 Control Flow Obfuscation. 0 means off, 100 mean 100% intensity.
Domains d Comma separated list of domains Encrypted Domain Lock
Encrypt e String to encrypt if found Literal Strings Encryption. You can use this switch more than once.
ForceCompression f on, off Force to write files in a compressed format.
GenerateMap g on, off Generate XML mapping table. Check mapping table.
IgnoreWarnings i on, off Ignore Identifiers Renaming warning
UseASKeywords k on, off Use ActionScript Keywords for the new identifiers names
PreventLocalPlayback l on, off Prevent running the files on a local host
RemoveMetadata m on, off Remove Metadata
RenameProtectedNamespaces n on, off Rename Protected Namespaces
Optimize o on, off Optimization
Preset p most_aggressive, safe, best_size, testing Protection preset
Rename r on, off Enable or disable Identifiers Renaming
Removedeadcode t on, off Remove Dead Code
Slr s on, off Statement-level Randomization
RemoveFunctionParameters u on, off Remove Function Parameters
RenamingLevel v Integer from 0 to 10 Set the renaming level, 0 is Safe, 6 is Normal and 10 is Rename Everything
Wrap w 0, 1, 2, 3 Dynamic Code Wrapping. 0 means off, 1 is minimum, 2 is medium, and 3 is maximum.

Switches are used in the following format:

For example:

ssCLI.exe myProject.sspj c:\output -slr:off -controlFlow:50 -wrap:3

Or using the short form for the switches

ssCLI.exe myProject.sspj c:\output\ -s:off -c:50 -w:3

This will load the SWF files and settings for the project file, turn off Statement-level Randomization, setControl Flow Obfuscation to 50%, set Dynamic Code Wrapping to maximum, and save the protected files in the folder c:\output.

Back to the top

Ant Script Integration


You can integrate secureSWF obfuscation process into your Ant script by first defining an Ant task as the following:

<taskdef name="protect" classpath="secureSWF.jar"

Note: Please make sure to have secureSWF.jar your classpath.

After that you can use the new Protect task with attributes and nested elements as shown below. There are two ways to use secureSWF through Ant. The first one is by using the projectFile attribute, which will load all the settings from a project file that you can export from the GUI first then override them using other attributes and nested elements. The other way is to specify all the settings you want in the Ant script and specify a Fileset nested element to load the SWF files.


Attribute Description Type Default Value
controlFlow Control flow obfuscation, the intensity can be set between 10% and 100%. Integer 20
codeWrapping Code wrapping intensity 0 for Off, 1 for Minimum, 2 for Medium, or 3 for Maximum. Integer 2
renamingLevel Renaming level, 0 for Safe renaming, 6 for Normal Renaming, 10 to Rename everything. Any other values will throw a runtime error. Integer 6
forceCompression Forces compression when writing the output files. This will only affect uncompressed Swf Files Boolean True
generateMappingFile Generate an XML mapping table that can be used to de-obfuscate error messages. Boolean True
ignoreWarnings If set to true, secureSWF will not reprocess renaming warnings. Boolean False
optimize Enable or disable optimization. Boolean True
preventLocalPlayback Prevents Swf file playback on localhosts Boolean False
removeDeadCode Removes dead-code. Boolean True
removeMetadata Removes metadata. Boolean True
removeFunctionParameters Removes functions' parameters Boolean True
renameIdentifiers Enable or disable Identifier Renaming. Boolean True
renameProtectedNamespaces Renames protected namespaces. Boolean True
slr Enable or disable Statement-level randomization. Boolean False
breakFunctionCalls If enabled secureSWF will break function calls Boolean False
projectFile GUI Project file String
outputPath Determine the output path where the new protected file generated by secureSWF is saved. String
keyFilePath Path to secureSWF ‘' file. String
prefix Add prefix to file name and saves it in the same folder of the original file String
postfix Adds postfix to file name. String
aggressiveRenaming Turns your identifiers into string tokens that misleads decompilers, foils code formatters, and most importantly greatly distracts the code reader. Boolean True for AS2 False for AS3
useASKeywords Use ActionScript reserved words (keywords) For new names. Boolean True
adtFile File path to adt.jar. This is require when using AIR files. You will usually find adt.jar in [flex sdk folder]/lib/adt.jar String
certificate AIR certificate file path. String
password Certificate password String
timestamp Timestamp AIR applications Boolean False
superCompression Enable Super Compression Boolean False
huffmanBlocks Super Compression Huffman blocks value Integer
preserveFolderStructure Creates new files in the output folder in subfolders similar to the original location with respect to the FileSet Boolean False
processing When set to "all", all files are processed as a single project allowing secureSWF to resolve identifiers accessed across the files. This is identical to the way secureSWF behaves when using the GUI. When set to "set", every group of files in a FileSet is processed as separate project. And when set to "file", each file is processed separately. "all", "set", "file" "file"
Back to the top

Nested Elements


As with regular Ant FileSet element, you can add a number of files to be protected. Example:

 <fileset dir="/home/test/Sample4" includes="**.swf" />

This will be ignored if a project file was specified in the Protect task.


Using a rule element, you can force secureSWF to rename or leave unrenamed any type of identifier such as packages, classes, frame labels ...etc. You can also specify code transformation options for any function. You can add multiple renaming or code transformation rules to your ant task.


Attributes have no default values, they will override any other settings you have specified.

Attribute Description Type
filter Pattern match identifiers or functions with. String
statementLevelRandomization Override Statement-level randomization. Boolean
controlFlowObfuscation Override Control Flow Obfuscation. 0 means off, 1 to 100 is the intensity. Integer
dynamicCodeWrapping Override Dynamic Code Wrapping. 0 for Off, 1 for Minimum, 2 for Medium, or 3 for Maximum. Integer
select When set to true, will force secureSWF to rename the identifiers that this rule applies to. And will leave identifiers unrenamed if set to false. Boolean
publicOnly Apply the rule to public class members only Boolean


 <protect outputPath="/home/test/sample/secure">
   <fileset dir="/home/test/sample" includes="**.swf" />
    <rule filter="*" select="false" />
    <rule filter="com.kindisoft.Util.md5" statementLevelRandomization ="true" controlFlowObfuscation="100" />

Back to the top


You can specify strings that you would like to be encrypted in the protected files by using LiteralString nested elements.

The following will encrypt the string "Pas$W0rd" if found in any of the SWF files.

<literalString value="Pas$W0rd" />

domainName Encrypted Domain Locks

Adding a domain to the list of encrypted domain locks is much like adding a literal string.

<domainName value="" />

Sample Build.xml file

<project name="test" default="protect" basedir=".">
 <taskdef name="protect" classpath="secureSWF.jar"
  <target name="protect">
    <protect keyFilePath="/home/test/secureSWF/" outputPath="/home/test /sample/secure">
      <fileset dir="/home/test/sample" includes="**.swf"/>
      <rule filter="**" select="false"/>
      <literalString value="sEc.R3t"/>
      <domainName value=""/>
      <domainName value=""/>

Back to the top
